Different schemes to photo-cure the epoxy resins are reviewed in this article. Photo curing of epoxy resin by UV-polymerization mechanism is one of the effective methods. “A light induced chemical practice to cure the dry composites i.e. coatings or films are the termed as photo curing”. The most important fact of photo curing is that it gives best performance, eco-friendly compatibility, and efficacy of processing. So, due to these facts, thermal curing is replaced by photo curing. Photo curing is applicable only for the films of definite thickness and colored composites. Epoxy resin and photo initiator were mixed together and then mixtures were cured through a curing reaction which was proceeded in the presence ofinfrared or ultraviolet light (UV-Light), or an electron beam.

Epoxy resins; Photo initiator; Thermal curing; Smart method; Diluents

Photo curing of ER by UV-polymerization mechanism is one of the effective methods. “A light induced chemical practice to cure the dry composites i.e. Coatings or films are the termed as photo curing”. The most important fact of photo curing is that it gives best performance, eco-friendly compatibility, and efficacy of processing. So, due to these facts, thermal curing is replaced by photo curing. Photo curing is applicable only for the films of definite thickness and colored composites. It efficiently works on the thin films of composites. Photo curing also reduces some basic problems occurring in the different methods of curing like curing on one line of sight, absorption of light in thick film and coloring agents. Thermal curing demands the corresponding facility of air-drying, and also pollutes the environment. But photo curing is efficient method because it has less these problems rather it solves them. It has none of solvent for evaporation. It does not pollute the environment and loses the coatings in very limited amount. Its results appear in very short time period and it causes very less pollution in environment. Also the photo curing brings several outstanding manual characteristics such as marvelous scratch,resistance against corrosion, and excellent bonding properties [1].

An UV curing is a surface treatment which either is cured by ultraviolet radiation, or which protects the underlying material from such radiation’s harmful effects. UV-curing technology has been popular for decades due to its significant advantages including lower energy consumption, less environmental pollution lower process costs, excellent film quality, high efficiency in production, fastness of process and no oxygen inhibition [2]. It also has a wide range of applications such as coatings, inks, adhesives, and composite materials [3].

Photo cured ER have great attention due to the excellent properties and outstanding working performance. ER also has 3-dimensional stabilities, adhesion properties, and efficient resistance against corrosion [4]. They are applicable in several industries including the floor making, laminate production, aerospace, and aircraft [5].

To enhance their properties, some nanofillers e.g. Clay alumina, titania, colloidal silica, and carbon nano tubes, were added. To obtain most beneficial characteristics, EC are cured by heat or radiations. This is an excellent method to cure EC but have a problem that radiation hindered due to color additives [6].

Different schemes to photo-cure the ER are detailed here.

Carbon black (CB), Azo-Yellow and Phthalocyanine green have been utilized as commercial fillers. Monomer of 1,4-butanediol diglycidyl ether was used. PI of Triarylsulfonium hexafluoroantimonate salt in 50% wt within propylene carbonate was taken. The samples were prepared bytwo methods; i. Conventional method. ii. Smart method.

Conventional method: Filler mixture, PI and Monomer was passed through process of preparation, irradiation then poured into molds. The prepared samples were stored at 296K for period of 12 hours. The Standard sample was also prepared by adopting the same method.

Smart method: PI solution was passed through irradiation and then mixing with filler and epoxy in relative concentration. Then mixture was poured into mold and kept at 296K for period of 12 hours. The Standard sample was also prepared by adopting the same method [7].

Tertiary tetramine which is being functionalized with six allyl groups is used as curing agent of epoxy composites. It is anionically polymerized for the production of polyether. Curing agents also have double bonds which react with the thiol and form polythioethers. The unreacted composites can be completely polymerized by polyethers. Modulus of 25000-29000 mpa is used to cure the specimens completely [8].

If graphene is being dispersed in any polymeric resin it will ultimately enhances is mechanical properties. For verification, antiscratch test is used. For curing of ER, reduced graphene is investigated which is being enhanced by amino functionalized organo-silanes. The results revealed that by adding fingorin ER, their mechanical properties becomes high and their ability to form strong covalent bond increases a lot. Materials are taken and fillers are prepared. Coating is also prepared and tests are done to investigate the effectiveness of graphene against ER. Fngoris tested with GO, GNP and amino fnsiO₂ reinforced cycloaliphatic ER. Conclusion has shown the effectiveness of fngor [9].

Jin et al. reviewed the synthesis and curing process of ER. Also they discussed the method of preparation and applications of ER.

Curing agents/processes: Different curing processes are used to cure ER. One of the main agents is epoxy curing agents. By the addition of these agents the ER can be cured. Other processes include amine type curing agents, alkali curing agents, anhydride curing agents and catalytic curing agents.

Curing systems: Different curing systems are discussed which can cure ER by the reacting epoxide groups in ER. And it forms a complex cross-linked, 3-D network. There are different curing systems which includes room-temperature curing, heat curing and photo-curing. Photo-curing is the best technique among all of them. It involves infrared, UV and electron beam irradiation. And it reduces the curing time from hours to minutes.

Epoxy based composites: Epoxy based composites are rigid and brittle and have lower resistance towards growth and initiation. It ultimately limits the use of ER in many applications. And to overcome this issue different ER are prepared which includes thermoplastic modified epoxy system, epoxy/inorganic composites, epoxy/carbon fiber composites, epoxy/clay nano composites and epoxy/carbon nano tube composites [3].

Shen et al. used variable monomers and oligomers and coated them with temporary and permanent coating. Also a series of UV curable hydrophilic resins were used results have shown that the cured coatings have alkaline ability in them. Samples are taken, synthesized and cured. In curing of resins, the coated formulations were cured at room temperature by equipment named Lab Cure UV tunnel. After this process the films and other specimens are kept at ambient overnight for characterization. Then samples are characterized by FTIR spectra, NMR spectra, GPC measurements, chemical and water resistance, contact angle measurements, SEM, DSC measurements, TGA analysis and photo polymerization mechanisms [2].

M Atif et al. used thick or thin films as transparent or colored composites for UV-curing. Thin films are preferred as their mechanical performance is excellent, thermally stable compounds and have unique electrical or optical properties. Thick films are also used to be cured because of its property to lessen the fabrication expenses of complex assemblies. This technique results in the formation of liquid monomer (solvent free) into complex inter-linked polymer (at room temperature). Thick samples cannot be cured properly as light cannot penetrate into them. Also, little curing takes place when colored additives or filers are present. With the new inventions these issues can be resolved. Cationic polymerization mechanism is used which is very complicated and have many steps.

Initiation involves the stimulation of onium salts. The salts then undergo cleavage and cations and aryl cations are produced. In this way, it produces strong Bronsted acids which are used as starting material of polymerization. After this steps, reaction again takes place and from secondary onium ion.

Propagation involves two mechanisms: 1. Activated chain end (ACE) mechanism, 2. Activated monomer (AM) mechanism. In ACE mechanism, when the onium ton is being produced, it propagates to grow the chain. In AM mechanism, during polymerization, the ionic end of the growing chain is encountered by the alcohol molecule by which the protonated ether is being furnished. So, by these two mechanisms the chain is propagated.

Termination includes different processes. In the propagation chain the nucleophile impurities e.g. water get interacted with it and release inactive species due to which the chain terminates. The chain is also terminated by chain transfer reactions [10].

10mg of Graphene sheets (GNP) is reacted to 10 ml of H₂O/etoh 50%. This is done in ultra-sonication bath. After that KaUCl₄ is added to concentrate the dispersion of about 5mm. When the deposition comes to an end, particles are being washed and dried up for a night at 70 °C to obtain neutral PH. Then Au-GNP is dispersed in the epoxy resin, ranging 0.5-2.0 wt%. This is done with the help of ultraturrax 0.2 wt% of PI was added after mixing. Different methods are used to determine the extent of photopolymerization. It includes Real-Time-FTIR spectroscopy, ASTM D2765-84 and DMTA [11].

Different types of phosphate esters were prepared. This may include butyl phosphate ester (BPE), ethyl phosphate ester (EPE) etc. These were prepared by the ratio 2:1. ER and each of the phosphate ester is mixed together to form uniform mixture. Then by NMR, CCT, and TGA tests the specimens were examined and phosphate esters were formed [12].

Two samples of glass fiber reinforced epoxy (GRE) composites were prepared and polymerized by VPA monomers. Their flammability was tested by cone calorimetric test (generally called as fire test). Results showed that samples with thicker coatings did not catch fire. Also thicker coated samples were resistant to peel off while come in contact with tap pull test. But they lost its coating in water soaked test showing its hydrophobicity [13].

The following materials were used to photo cure the epoxy composites; Cycloaliphatic ER, 3,4-epoxycyclohexaylmethyl 3,4-epoxy cyclohexane carboxylate (CE) and triphenyl sulphonium hexaflouroantimonate as cationic PI, nanoparticles of α-Al₂O₃ with 150 nm diameter and specific surface area of 14.5 m²8/g. Several amounts of Alumina particles with volume range of 0.5% and 0.4% were allowed to dispersed in epoxy composite via an ultrasonic water bath for period of 120 minutes and then passed through ultra turrax for period of 5 minutes at 25000 rpm. Then all mixtures with cationic PI (2 wt%) were added and cured under static UV-lamp whose having intensity of 55 mw/cm² at surface of sample [14].

An ER named as 1,6-hexanediol diglycidyl ether (HDGE) in weightage of 50, 60, 70 & 75 wt% was mixed with Zinc epoxy to prepare the homogeneous mixture. An ultra turrax was used for period of 10 minutes at the speed of 30000 rpm to achieve the chemically homogenous composition and dispersion of zinc oxide powder. After that, PI in 4 wt% was dropped in mixture and then mixture was placed at ultrasonic bath for the period of 20 minutes. Coating of PI was appeared at mixture formulations between substrates of 2 PP. Then it was passed through curing via UV-rays of intensity 40 mw.cm² for 5 minutes [15].

The mixture of epoxy resins with Gd₂O₃:Eu³⁺ nanorods wereprepared by dispersing the nanorods into UV-curable resins. After that the sonication of mixture was done for about 60 minutes and then addition of cationic PI (2 wt%) was proceeded. Then these formulations were passed through spinning at three different stages of 500 rpm, 1000 rpm & 2000 rpm. Spinning produced coatings on glass slides of mixture. Then these were cured by UV-light (intensity of 50 mw.cm² in air about 3 minutes [16].

Clean samples of ER and nano composites with 0.25-0.75 wt% were prepared by using epoxy photo-curable resin SOMOS 10220 (Multiacrylate monomers 40-50%, 15-25% epoxies, 20-35% polyols and 0.2-5.0 wt% of PI). Then ER became a mixture of acrylate monomer and epoxy oligomer. Multiwalled carbon nano tubes (MWCNT) were dispersed by combined sonication-mechanical & magnetic stirring. The sonication was proceeded about 24 minutes. This sonication period was divided into 16-cycles; each cycle was consisted of 90 seconds with the rest of 15 seconds to save the sample of 40 g epoxy from overheating. At that time, sample was stirred mechanically and magnetically also. Samples of width 0.5±1.0 were photo-cured for period of 12 and 24 hours by UV-A lamps of 355 nm and have 0.08 W-cm^-2 intensity at 313k. After that samples were dispersed and analyzed via transmission electronic microscopy (TEM) in JOEL-JEM exii of 120 kv instruments. Then samples were thermo-magnetically up to 873k at 283k/min heating rate in a NETZSCH STA 449C instrument [17].

The dispersion of carbon based nano fillers into ER was proceeded directly by a IKA Ultra turrax at 30000 rpm for period of 10 minutes. Then samples were kept within ultrasonic bath for period of 10 minutes. Then 2% PI with respect to resin was added in carbon nano fillers. The coatings were disappeared on glass and samples were passed through photo-curing. The UV-irradiation was performed to develop the UVpolymerization, with 55 mw/cm² light intensity on sample surface for duration of 15 minutes and then 3 minutes for transparency of resin. The coatings of homogenous disc shaped nano-composite (thickness of 150 μm and diameter of 2 cm) were appeared [18].

An IKA Ultra turrax (30000 rpm) was used for period of 10 minutes to disperse the carbon base nano fillers in ER. After dispersion, all mixtures were kept in ultra-sonic bath. 2 wt% PI was mixed within the ER. Then glass substrates were covered by coatings of these mixtures and then cured by UV-Light. UV-irradiation with intensity of 55 mw/cm² on sample surface, was done to promote the photo polymerization for duration of 15 minutes. After that, disc shaped homogenous coatings having 150 mm thickness and diameter of 2 cm were prepared and cut into small samples for DMTA and surface hardness analysis [19].

Diglycidyl ether of bias (DGEBA) and ER equaling in amount was photo cured by a BOLTORN^® H40, hydroxyl terminated hyperbranched polyester (Mw 5100 g/mol) and 64 terminal groups. triarylsulfonium hexafluoroantimonate (TAS-Sb) was utilized as cationic PI. Different amounts of these materials were mixed and heated with hot air blower and stirred to prepare liquid mixtures of DGEBA and solid H 40.2% of PI was mixed within in samples to photo-cure. Then samples were passed through stirring and placing it at 255k to avoid the photo activation and photo polymerization. Photo curing of different samples were proceeded at several values of temperature. Samples were cured with mettler DSC-821e calorimeter which was modified by a Hamamatsu lightning cure LC5 (Hg-Xe Lamps) with two beams. From these, first beam was used for sample side while other was consumed for standard side. The curing of samples was proceeded in an open aluminum pans within nitrogenous atmosphere. Every sample was passed through scanning two times to disappear the UV-irradiation thermal effect. First time scan was performed about 4 minutes while irradiation was done about 30 minutes and then for 4 minutes in absence of UV-light. The light of 21 mw/cm² intensity was used. Other dynamic post curing was performed in that DSC in absence of UV-Light for period of 10minutes at 303-523k to find out the heat residual [20].

An Ultra turrax was used at 30000 rpm for duration of 10 minutes to disperse the 0.5-1.5 wt% graphene into ER. Then ultrasonic bath was also used for fine dispersion of fillers within ER. After that, triphenylsulfonium hexaflouroantimonate (2 wt%) as PI was mixed in every sample. To perform DMTA and Surface hardness test, glass substrates was covered with coatings of these samples to cure through UV-light. UV-irradiation with intensity of 55 mw/cm² on sample surface, was done to promote the photo polymerization for duration of 15 minutes. After that, disc shaped homogenous coatings having 25 mm thickness and diameter of 3 cm were prepared and cut into small samples [21].

Monitoring of monomeric photo-polymerization was done by use of infrared spectroscopy [22]. The apparatus was adjusted with UVEXS Model SCU-110 mercury arc lamp (Sunnyvale, CA) which was fitted with flexible liquid optic wand. This wand was placed at angle of 450 at sample. While the distance between this apparatus and sample was altered to monitor the intensity of light. Intensities of UV-light were determined by UV-Supply procedure [23].

The dispersion of CNTs (0.1 wt %) within ER was proceeded. Then these were mixed by mechanical means of an ultra-turrax for 60 seconds. After mechanical mixing, thick layers (200 nm) were produced. These layers were cut by using a Reichert Ultracut S Ultrasmicrotome at 298k. Cutting device used to cut these layers was a diamond knife having cutting angle of 358 and dub [24].

Three types of patterns are used. Pattern I: In this scheme, direct photo induced polymerization reactions concern the creation of a polymer through a chain reaction initiated by light. Pattern II: Since direct formation of reactive species on the monomer by light absorption is not an efficient route, the initiation step of the polymerization reaction requires the presence of a PI which, under light excitation, is capable of generating these reactive species. Pattern III: Extension of the spectral sensitivity (that corresponds to the best matching between the emission spectrum of the light source and the absorption spectrum of the formulation) can be achieved by using (pss): their role is to absorb the luminous energy at a wavelength where PI is unable to operate and to transfer the excitation to PI. In that case, the reaction is defined as a sensitized photo induced polymerization [25].

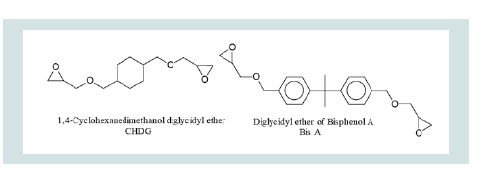

The photo-curing of materials; Bisphenol A (bisa) and 1,4-Cyclohexanedimethanol diglycidyl ether (CHDG) was started by photo Acid Generator (PAG). The chemical structural formulae of PAG and CHDG in monomeric forms are shown as below.

The resulted polymers were varied due to monomeric structures. The rigid aromatic closed ring structure of bisa, resulted in significant values of acoustic velocity-as compared to CHDG which is flexible than PAG. 20 g of monomers and 4 g of PAG were mixed to prepare the solution mixture. Mixture was placed under vacuum to degas as all of bubbles were disappeared.

For test analysis, mixture was placed within mold made from polytetraflouroethylene (PTEE) with diameter of 50 mm and depth of 6 mm. The irradiation of mold was done by a LIDAM scientific ultraviolet UV-Lamp with 368 wavelength and intensity of 5 mw/cm². To get desired value of thickness, aliquots of solution mixture was cured. Same polymers of bias and CHDG were prepared by following methodology. Samples of bias (49% excess) were passed through heating at 333k to decrease the viscosity and also to remove the air. Filled samples were prepared by two different particles. Materials with less impedance was prepared using Expancel PVDF hollow microsphere with diameter of 60x10^-6 m and 60 kg/m³ density. Then CHDG (10 g) and PAG (0.2 g) of expancel were used to prepare the specimens with 16, 27, 36.5, 43.4 and 49% sphere volume fractions.

Materials with higher impedance was prepared by BaSO⁴ with 4100 kg/cm³ density and 8-12 μm sized particle. Then bisa (20 g) with PAG (0.4 g) and baso4 with 13, 19, 25, 31 and 40% volume fractions were used to produce specimens. The baso 4 and expancel were achieved from boud materials [26].

Different monomers were used as reactive diluents in formulations. By an analysis named photo-differential scanning calorimetry analysis, the results of formulations are studied. Also physical and chemical properties of cured films are studied. In addition, by using DMA technique glass transition temperature and modulus are also determined [27].

A methodology (transmission methodology) is described to characterize polymer materials with a range of elastic properties that are suitable for application in piezoelectric transducer and array assemblies. The process permits the fabrication of polymer materials by photocuring thin layers of polymer. The photo-curing method can produce samples of homo-polymers or a blend of homo-polymers. Also, there is no additional amine curing reagent used in photo curing. Furthermore, the methodology described in this paper cures the epoxy resin through opening of the epoxy rings and forming ether linked polymer backbone. The structure of these polymers is therefore very different from those created by the conventional amine cure reaction [26].
